Benchmark Design Suite Area Utilization Profiles

Design	Region	Cell Area (mm^2)	Placeable Area (mm^2)	%Placer Util	%Silicon Util	Max Util Limit
mgc_des_perf_1
	des_perf	0.1790	0.1976	90.6	90.4	90.6
mgc_des_perf_a
	des_perf	0.1537	0.2712	56.7	71.7	56.7
	er0	0.0023	0.0125	18.5	18.5	42.9
	er1	0.0073	0.0388	18.9	18.9	42.9
	er2	0.0055	0.0280	19.5	19.5	42.9
	er3	0.0032	0.0295	10.9	11.0	42.9
mgc_des_perf_b
	des_perf	0.1527	0.2711	56.3	49.7	56.3
	er0	0.0011	0.0024	45.7	45.7	49.7
	er1	0.0012	0.0027	46.3	46.3	49.7
	er2	0.0014	0.0030	45.6	45.6	49.7
	er3	0.0008	0.0016	48.1	48.1	49.7
	er4	0.0007	0.0016	46.5	46.5	49.7
	er5	0.0013	0.0028	44.9	44.9	49.7
	er6	0.0016	0.0032	50.5	50.5	50.5
	er7	0.0013	0.0034	39.0	39.0	49.7
	er8	0.0014	0.0028	48.6	48.6	49.7
	er10	0.0135	0.0341	39.5	39.5	49.7
	r0	0.0009	0.0155	5.8	5.8	49.7
	r1	0.0011	0.0156	6.9	6.9	49.7
mgc_edit_dist_a
	edit_dist	0.1993	0.3682	54.1	61.6	54.1
	r0	0.0043	0.0613	7.0	7.0	45.5
mgc_fft_1
	fft	0.0584	0.0700	83.5	83.2	83.5
mgc_fft_2
	fft	0.0584	0.1170	50.0	50.0	65.0
mgc_fft_a
	fft	0.0555	0.1950	28.5	74.0	50.0

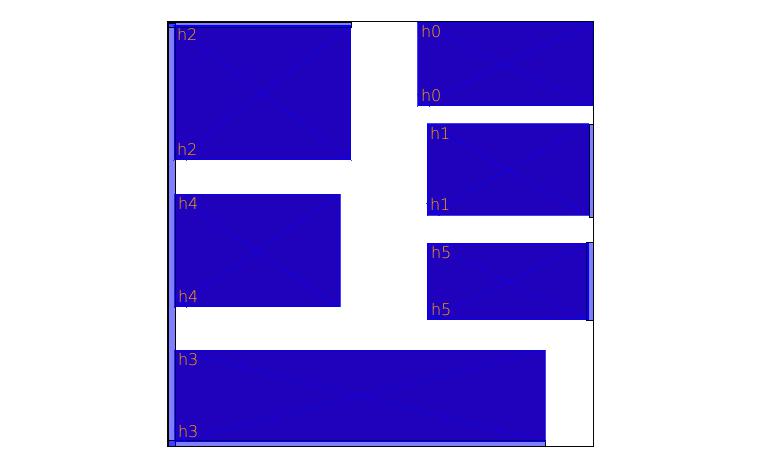

mgc_fft_b
	fft	0.0555	0.1793	30.9	74.0	60.0
mgc_matrix_mult_1
	matrix_mult	0.2427	0.3025	80.2	80.2	80.2
mgc_matrix_mult_a
	matrix_mult	0.2341	0.5216	44.9	76.8	60.0
mgc_matrix_mult_b
	matrix_mult	0.2069	0.6053	34.2	72.6	60.0
	r3	0.0020	0.0255	7.8	7.8	60.0
	r4	0.0062	0.0234	26.6	26.6	60.0
	r5	0.0141	0.0454	31.1	30.9	60.0
mgc_pci_bridge32_a
	pci_bridge32	0.0340	0.0531	64.0	50.8	64.0
	er0	0.0065	0.0310	20.9	20.3	38.4
	er1	0.0027	0.0114	23.8	23.4	38.4
	er3	0.0056	0.0194	29.0	29.0	38.4
	er4	0.0002	0.0023	9.7	9.7	38.4
mgc_pci_bridge32_b
	pci_bridge32	0.0354	0.1296	27.3	50.6	27.3
	er0	0.0067	0.0387	17.3	17.3	17.3
	r0	0.0037	0.0716	5.2	5.2	14.3
	r1	0.0023	0.0730	3.1	3.1	14.3
mgc_superblue11_a
	superblue11	0.9346	2.6626	35.1	73.3	65.0
	r0	0.0098	0.0302	32.3	32.3	65.0
	r1	0.0221	0.0561	39.4	39.4	65.0
	r2	0.0065	0.0210	30.8	30.8	65.0
	r3	0.0222	0.0700	31.7	31.7	65.0
mgc_superblue12
	superblue12	1.0053	2.2408	44.9	57.3	65.0

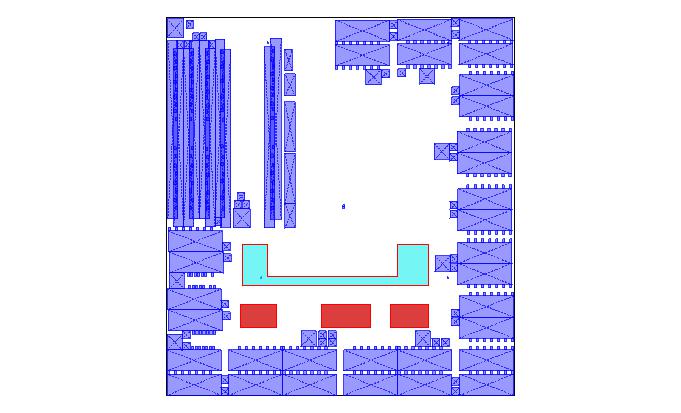

mgc_superblue16_a
	superblue16	0.5762	1.1487	50.2	73.9	55.0
	r0	0.0203	0.0516	39.3	39.3	55.0
	r1	0.0242	0.0642	37.7	37.7	55.0
